- ✅ Hi‑Si / TiSiN multi‑layer coating: High heat resistance, reduces friction, extends tool service life.
- ✅ Fine‑grain solid carbide blank: High rigidity, less chipping during hard material milling.
- ✅ Precision grinding flute geometry: Lower vibration, stable cutting, better surface finish.
- ✅ Strict tolerance control: Consistent dimension for mass‑production CNC operation.
- ✅ Factory direct supply: Support wholesale, drawing‑based OEM & ODM customization.
Applications
We provide full customization service for carbide milling cutters.
You can send us your drawings, required flute, coating, diameter and length requirements.
Small trial orders and bulk wholesale orders are both acceptable. All products come with mill test report before shipment.
Packaging & Delivery
Lead time: 7‑15 working days for standard stock items; 15‑25 days for OEM custom orders
We can arrange sea freight, air shipment according to customer’s requirement.
Recommended Machining Materials:
Hardened steel, mold steel, alloy steel up to 55 HRC.
Hardened steel, mold steel, alloy steel up to 55 HRC.
Typical Industries:
CNC mold manufacturing, automotive parts, machinery components, general metal‑working workshop.
Custom OEM ServiceWe provide full customization service for carbide milling cutters.
You can send us your drawings, required flute, coating, diameter and length requirements.
Small trial orders and bulk wholesale orders are both acceptable. All products come with mill test report before shipment.
Packaging & Delivery
Standard export packing: Each cutter in plastic tube, packed into carton or plywood case.
Lead time: 7‑15 working days for standard stock items; 15‑25 days for OEM custom ordersWe can arrange sea freight, air shipment according to customer’s requirement.
Q1: Can you produce non‑standard size carbide end mills?
A: Yes, we accept OEM custom according to your technical drawings.
Q2: What is the coating option for hard steel machining?
A: Hi‑Si / TiSiN coating is our preferred solution for material up to 55 HRC.
Q3: Can you provide material test report?
A: Yes, MTR mill test report will be offered together with bulk order shipment.
Get A Custom Quote
Get A Custom Quote
|

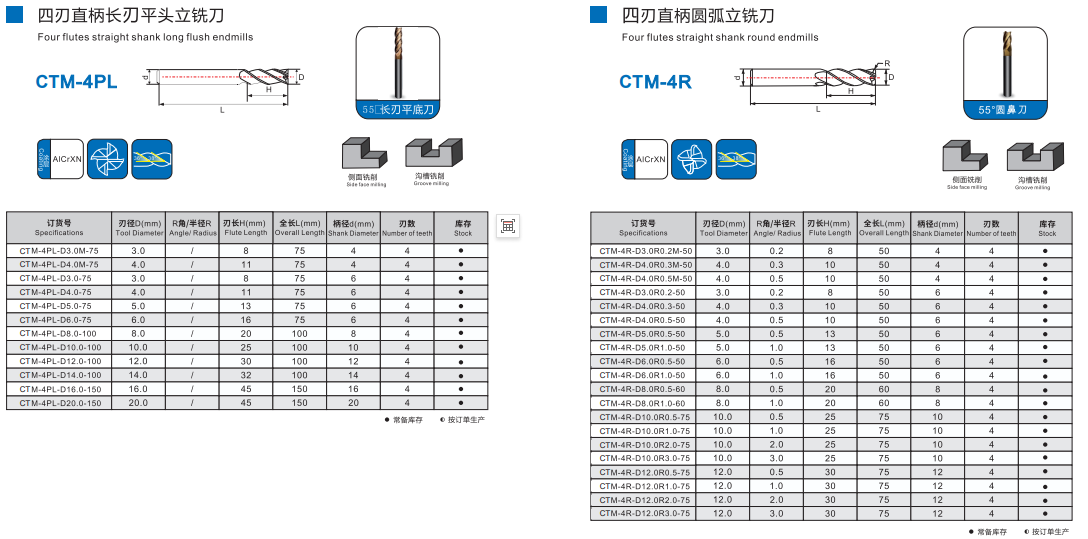

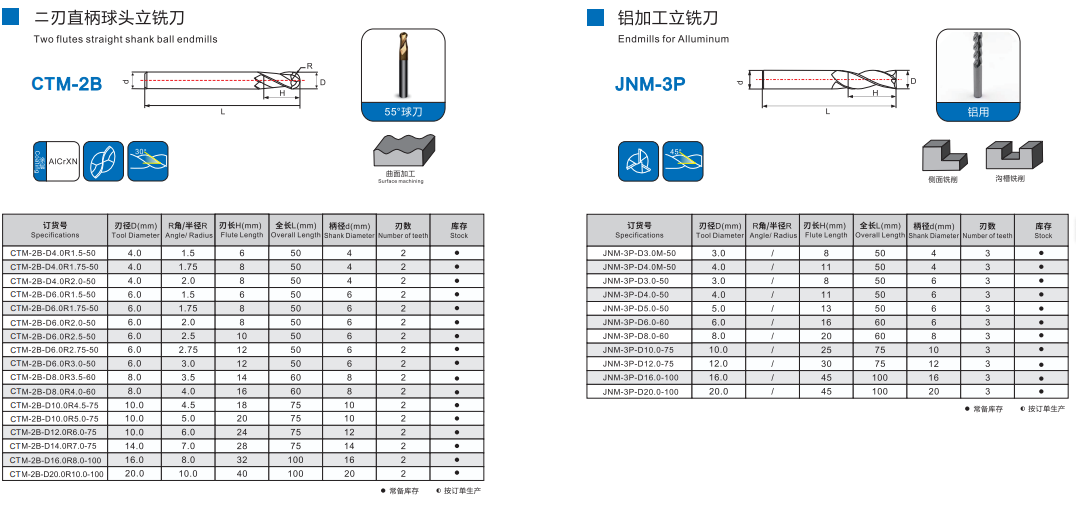

Product Name:
|

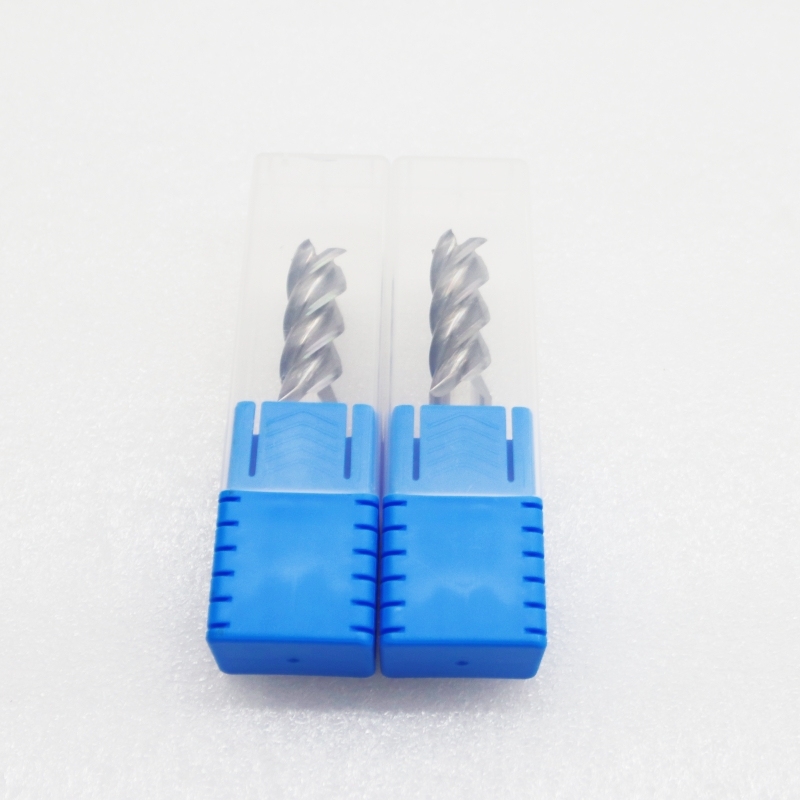

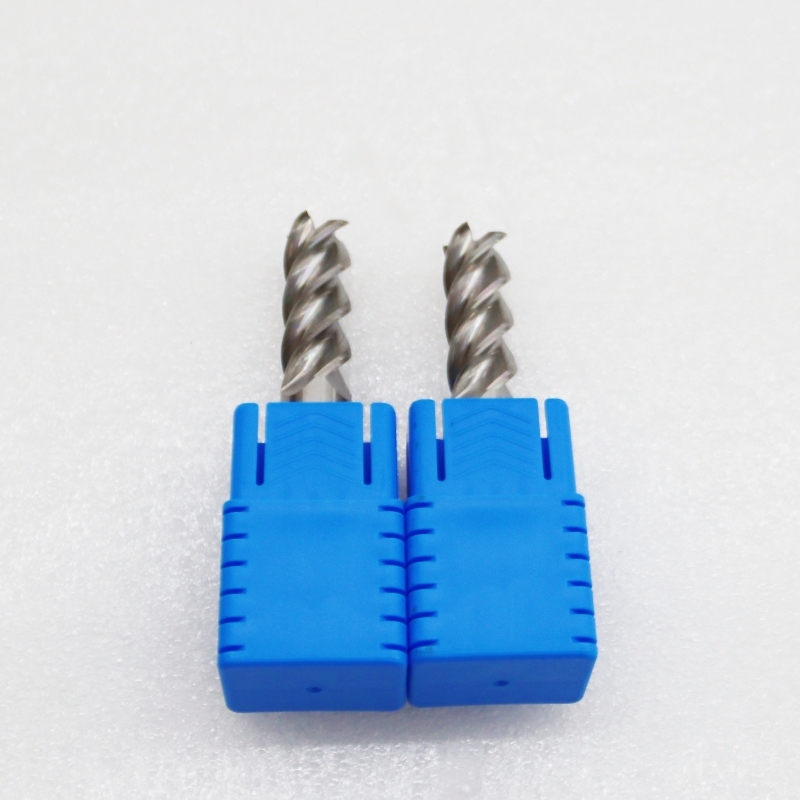

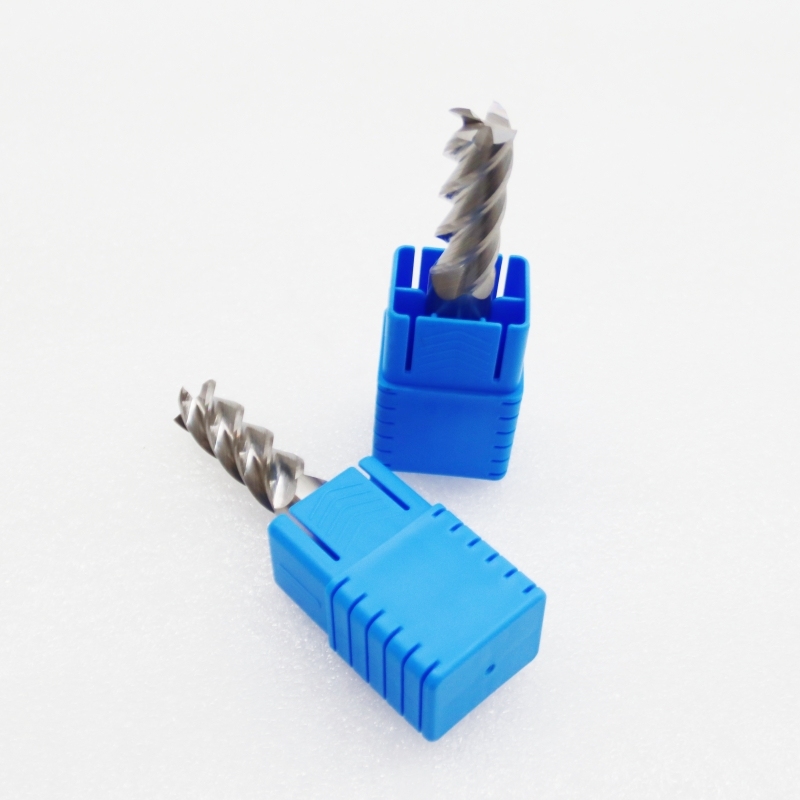

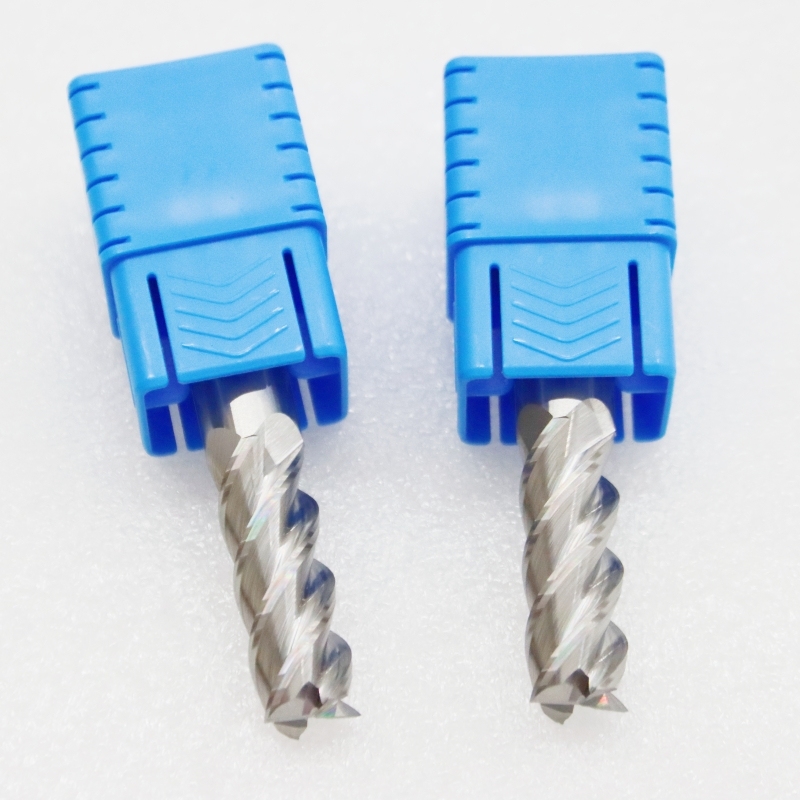

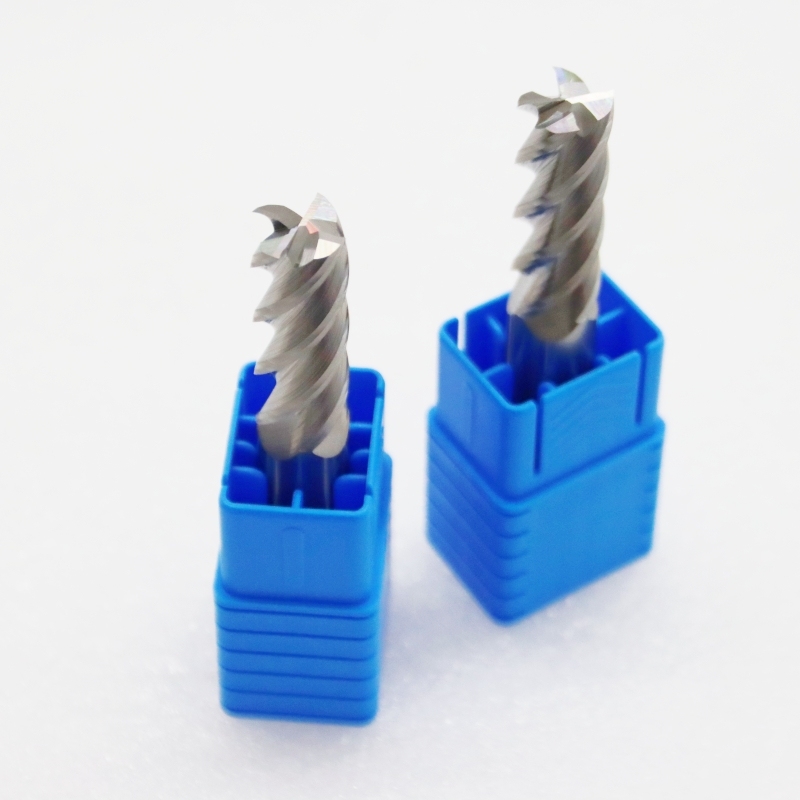

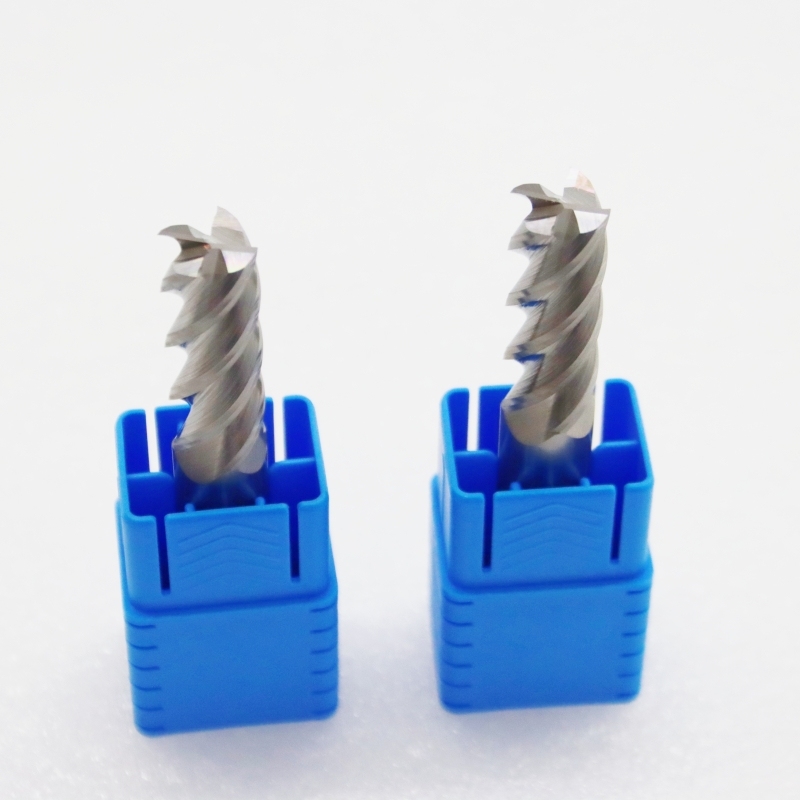

Tungsten Carbide Square End Mill Milling Cutter
|
|
Material:
|
Solid Tungsten Carbide
|
|
Coating Material:
|
TiAlN
|
|
Hardness:
|
45/55/65 HRC
|
|
Flute:
|
2/3/4 Flute
|
|
Helix Angle:
|
30/45/55 Degree
|
|
Application:
|
General-purpose operation Slotting, Drilling, Profiling
|
|
Working Machine:
|
CNC (computer numeric controlled) tool and cutter grinder machines
|
|
Coolant:
|
Water, water-soluble oil, and high-flashpoint oil
|
|
Workpiece material:
|
Stainless Steel, Carbon Steel, Aluminum, Cast Iron, Alloyed Metal, Brass, Bronze
|
|
Marketing Type
|
Ordinary Product
|
|
Showroom Location
|
None
|
Raw Material
|
Item Grade
|
HRC45
(YG10X ) |
HRC55
(YL10.2 & WF25) |
HRC60
(Germany K44 &K40) |
HRC65
(Sandvik H10F) |
|
Details
|
Grain size 0.7um
Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um
Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um
Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um
Co10% Flexural strength 4300N/mm2 |
|
Coating Classifying and Advantage
|
|||||
|
Item
|
Coating Type
|
AlTiN
|
TiAlN
|
TiSiN
|
Naco
|
|
Characteristic |
Hardness(HV)
|
3300
|
2800
|
4300
|
42(GPA)
|
|
Thickness(UM)
|
2.5-3
|
2.5-3
|
3
|
3
|
|
|
Oxidation Temp.(°C)
|
900
|
800
|
1000
|
1200
|
|
|
Friction Coefficient
|
0.35
|
0.3
|
0.25
|
0.4
|
|
|
Color
|
Black
|
Bronze
|
Bronze and gold
|
Blue
|
|
|
Advantages
|
High heat stability
|
Normally cutting
|
Suitable for heavy cutting, and high hardness cutting
|
For high precision cutting
|
|
|
Suitable for high speed, dry cutting
|
Suitable for cutting mould steel, stainless
steel |
Suitable for high hardness cutting, mould steel processing
|
|||
|
Most suitable for carbide cutting tools, turning insert
|
|||||
